Panel Recessed

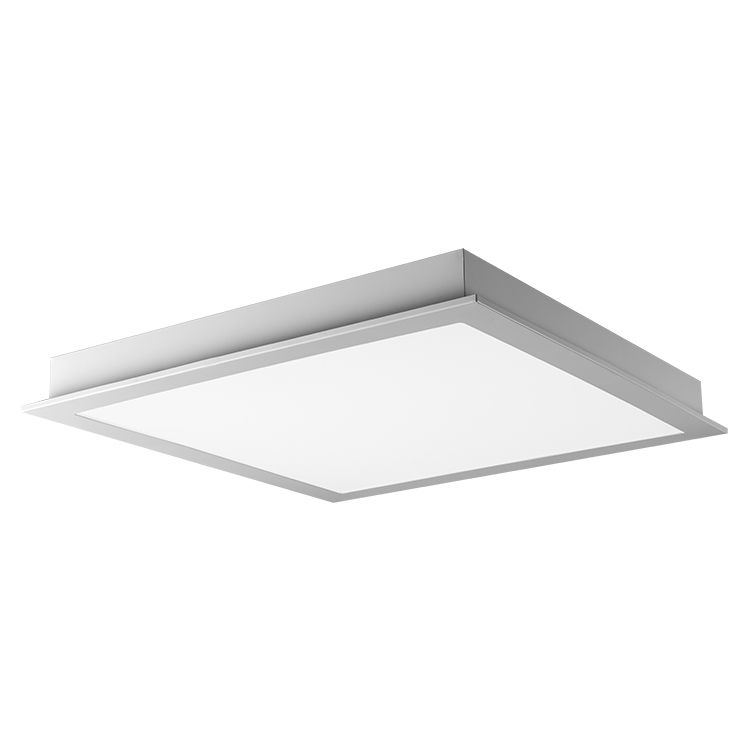

RIGEL SERIES

RIGEL SERIES
Nominal Voltage 220-240 VAC
Body Materials Sheet Metal
Optics PMMA Diffuser
Led Options Osram, Seul, Samsung
Class I
Ingress Protection IP40 - IP65
Optional Dimmer, DALI, Emergency Kit, Sensor
Power Consumption (W)
Output Lumen (lm)
Correlated Color
Temperature (CCT)
Color Rendering Index (CRI)
LP-17WSA3030 17 2125 3000K/4000K/6500K Min. 80
LP-17WSA3060 17 2125 3000K/4000K/6500K Min. 80
LP-35WSA30120 35 4375 3000K/4000K/6500K Min. 80
LP-35WSA6060 35 4375 3000K/4000K/6500K Min. 80
LP-35WSA60120 70 8750 3000K/4000K/6500K Min. 80
Product Code / Dimension (mm)
L
W
H
Weight (gr)
LP-17WSA3030 292 292 60 1500
LP-17WSA3060 292 592 60 3000
LP-35WSA30120 292 1192 60 4500
LP-35WSA6060 592 592 60 4500
LP-35WSA60120 592 1192 60 8000

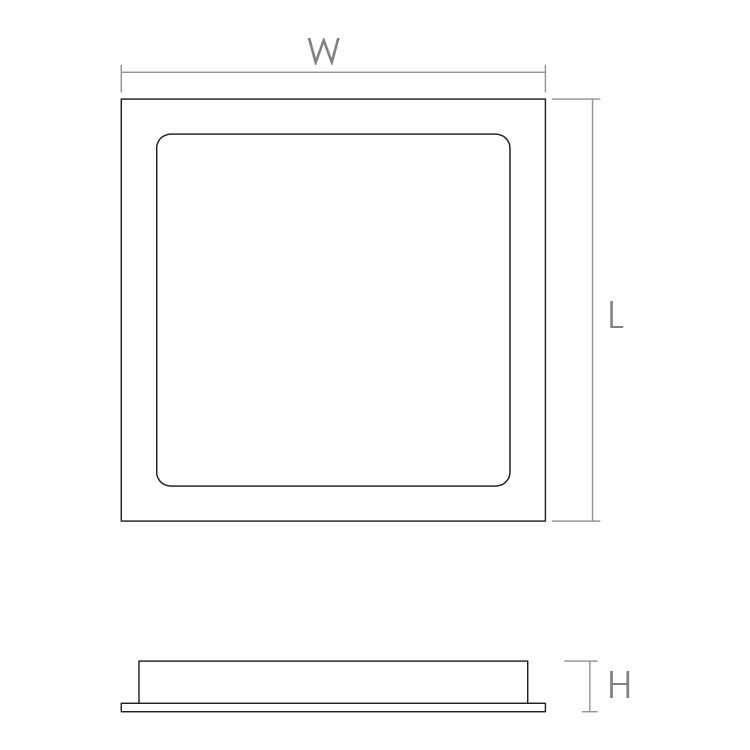

Technical Drawing

RIGEL SERIES

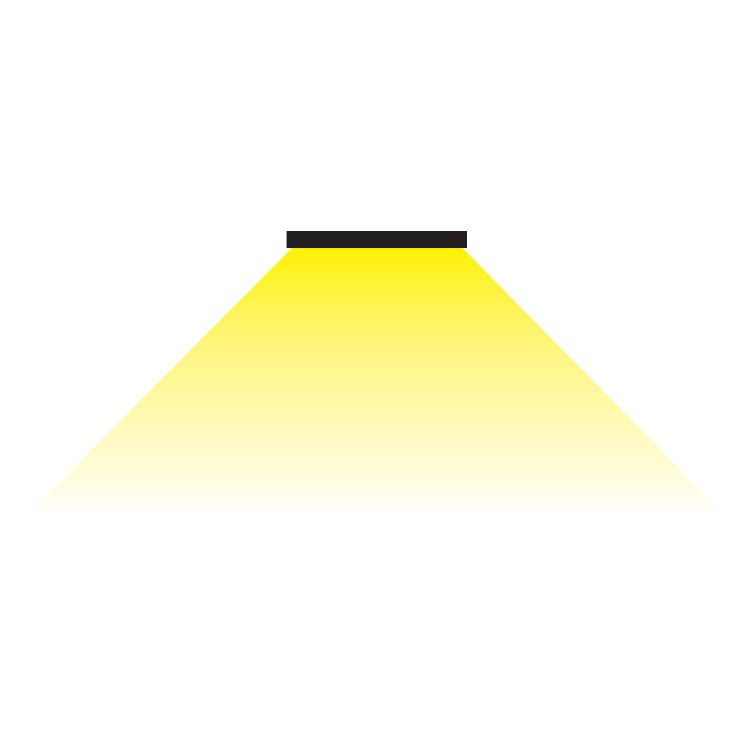

Light Distribution

RIGEL SERIES
