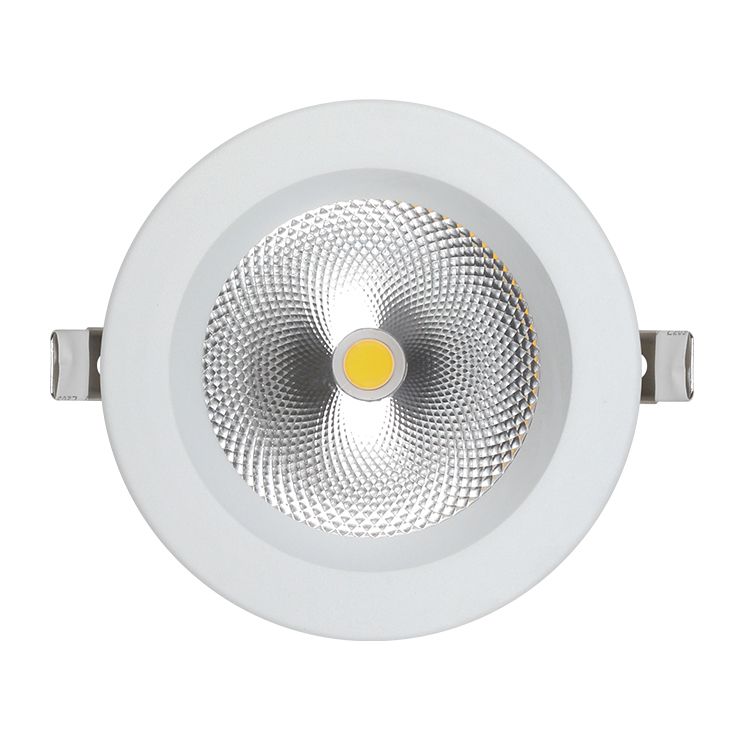

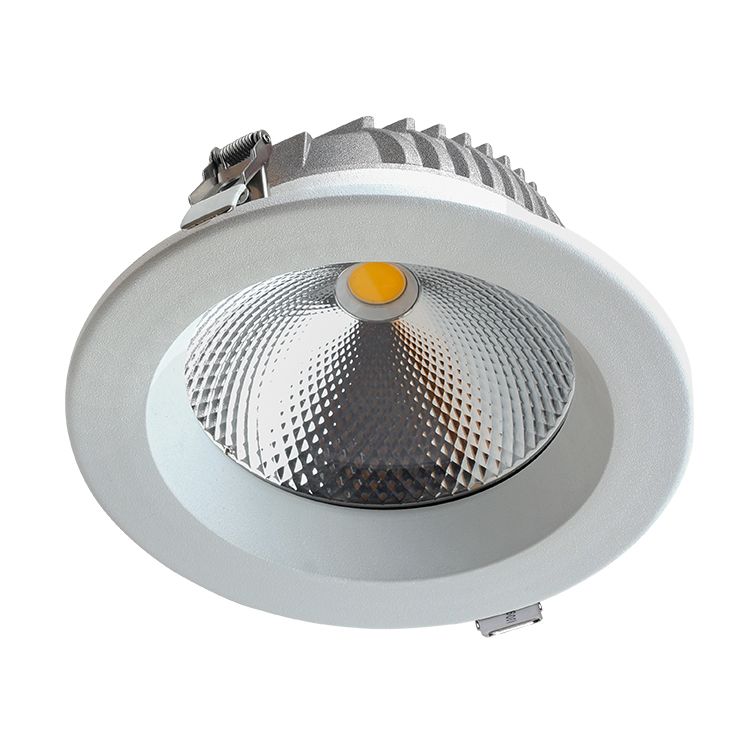

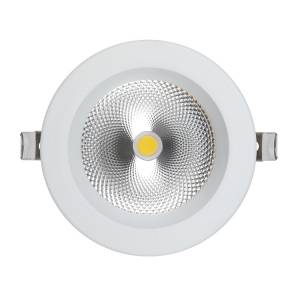

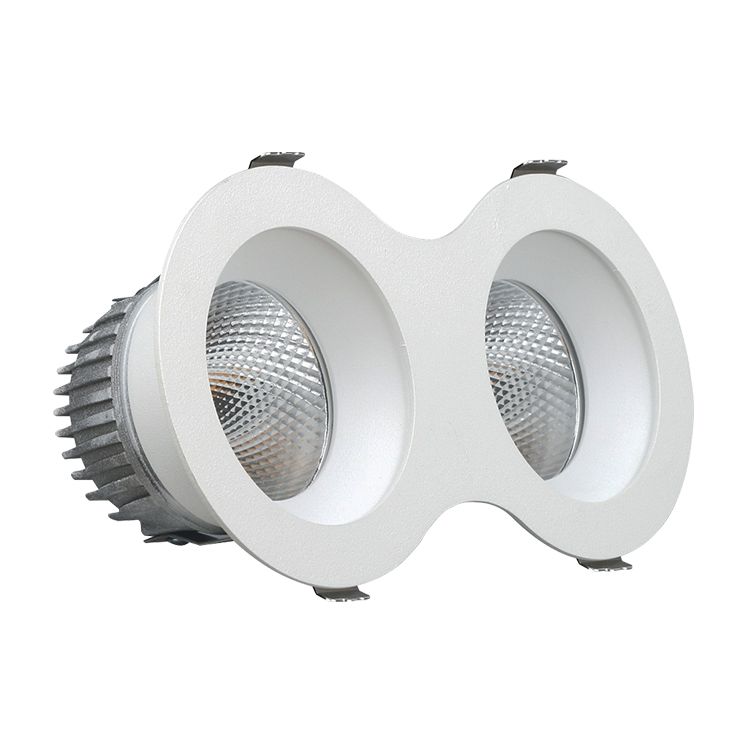

Downlight Recessed
DENEP
| Nominal Voltage | 220-240 VAC |

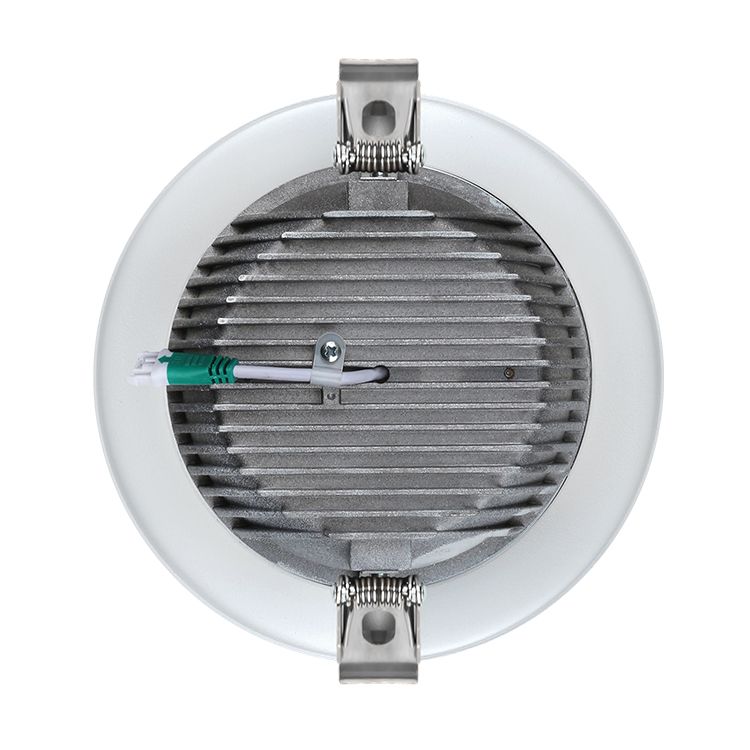

| Body Materials | Aluminum |
| Optics | PMMA Diffuser |
| Led Options | Osram, Cree, Citizen |
| Class | II |
| Ingress Protection | IP40 - IP65 |
| Optional | Dimmer, DALI, Emergency Kit, Seperately Mounted Sensor |
| Product Code | Power Consumption (W) | Output Lumen (lm) | Correlated Color Temperature (CCT) | Color Rendering Index (CRI) |
| L-SPT-5-6 | 6 | 750 | 3000K / 4000K / 6500K | Min. 80 |
| L-SPT-5-9 | 9 | 1125 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-5-12 | 12 | 1500 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-5-18 | 18 | 2250 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-5-25 | 25 | 3125 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-5-12D | 12 | 1500 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-5-18D | 18 | 2250 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-5-24D | 24 | 3000 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-5-36D | 36 | 4500 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-5-50D | 50 | 6250 | 3000K / 4000K / 6500K | Min. 80 |
| Product Code / Dimension (mm) | L | W | H | Weight (gr) | Cut Out |
| YL-SPT-5-6 | 80 | 80 | 70 | 150 | 70 |
| YL-SPT-5-9 | 108 | 108 | 70 | 280 | 90 |
| YL-SPT-5-12 | 120 | 120 | 55 | 300 | 105 |
| YL-SPT-5-18 | 150 | 150 | 58 | 360 | 130 |
| YL-SPT-5-25 | 200 | 200 | 58 | 470 | 180 |

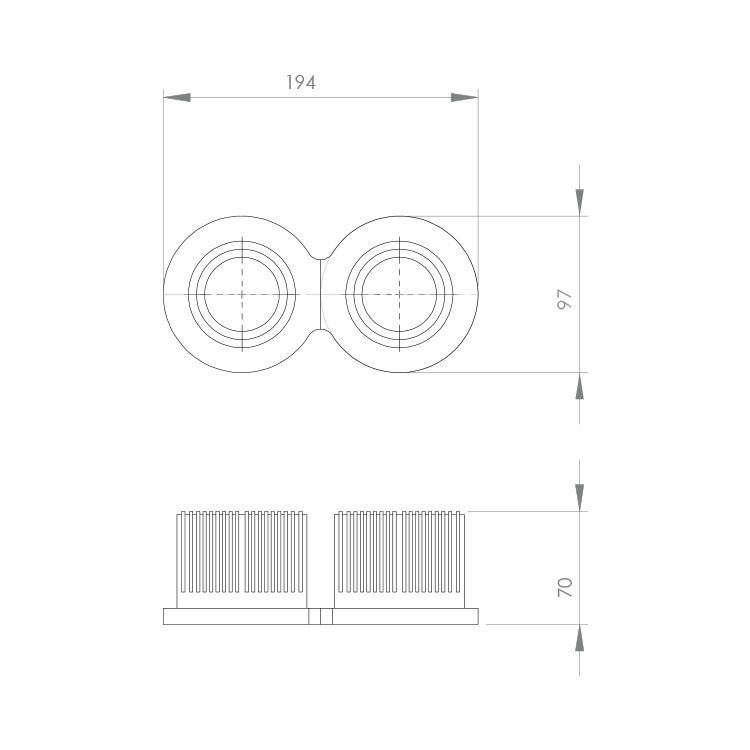

| YL-SPT-5-12D | 194 | 97 | 70 | 720 | 2*85 |
| YL-SPT-5-18D | 234 | 117 | 70 | 780 | 2*105 |
| YL-SPT-5-24D | 294 | 147 | 75 | 990 | 2*130 |
| YL-SPT-5-36D | 350 | 175 | 85 | 1300 | 2*160 |
| YL-SPT-5-50D | 384 | 192 | 85 | 1450 | 2*175 |
