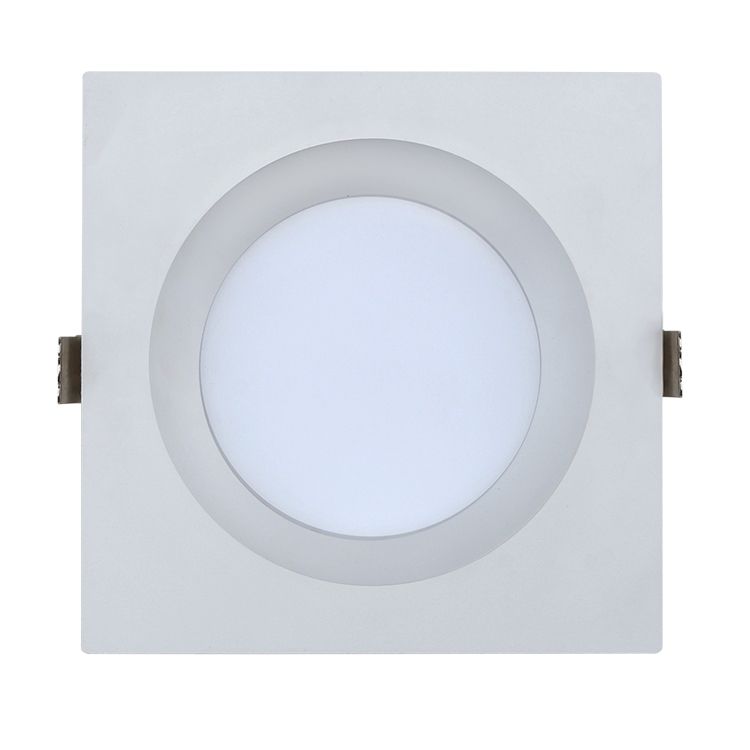

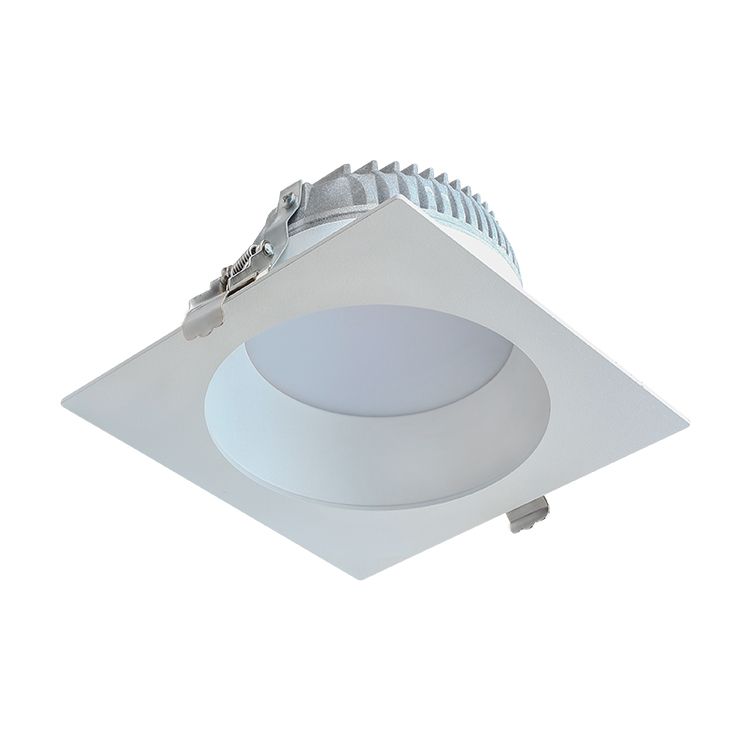

Downlight Recessed
ALGOL
| Nominal Voltage | 220-240 VAC |
| Body Materials | Aluminum |
| Optics | PMMA Diffuser |
| Led Options | Osram, Seul, Samsung |
| Class | II |
| Ingress Protection | IP40 - IP65 |
| Optional | Dimmer, DALI, Emergency Kit, Seperately Mounted Sensor |
| Product Code | Power Consumption (W) | Output Lumen (lm) | Correlated Color Temperature (CCT) | Color Rendering Index (CRI) |
| YL-SPT-9-4 | 4 | 750 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-9-6 | 6 | 750 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-9-8 | 8 | 1000 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-9-12 | 12 | 1500 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-9-15 | 15 | 2000 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-9-25 | 25 | 3125 | 3000K / 4000K / 6500K | Min. 80 |

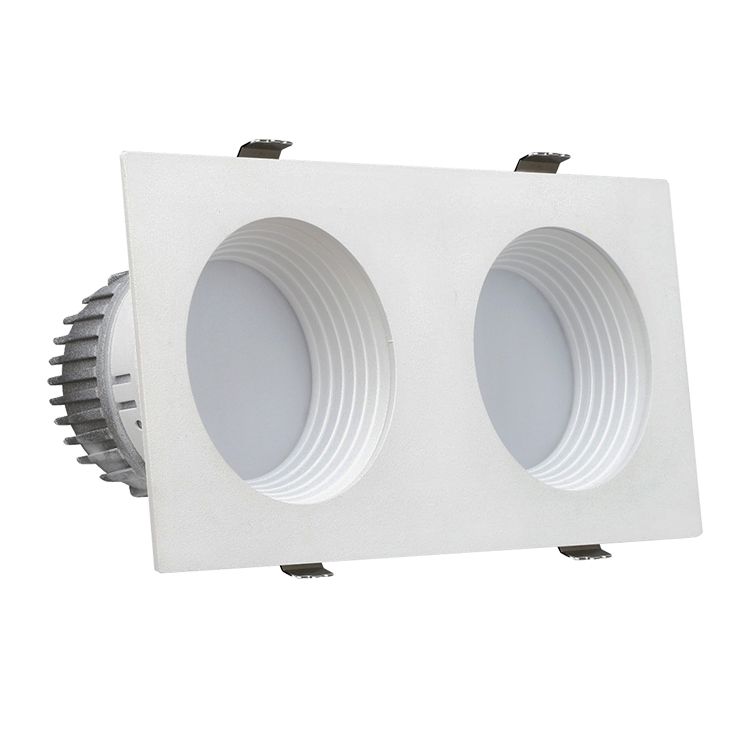

| YL-SPT-9-12D | 12 | 1500 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-9-16D | 16 | 2000 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-9-24 | 24 | 3000 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-9-32 | 32 | 4000 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-9-40 | 40 | 5000 | 3000K / 4000K / 6500K | Min. 80 |

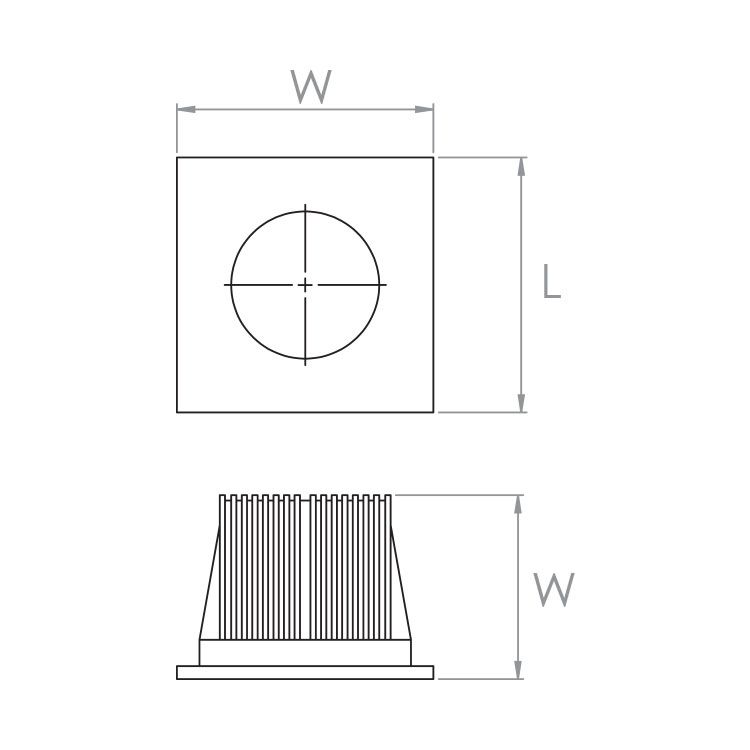

| Product Code / Dimension (mm) | L | W | H | Weight (gr) | Cut Out |
| YL-SPT-9-4 | 97 | 97 | 70 | 380 | 85 |
| YL-SPT-9-6 | 117 | 117 | 70 | 400 | 105 |
| YL-SPT-9-8 | 147 | 147 | 75 | 520 | 130 |
| YL-SPT-9-12 | 175 | 175 | 85 | 670 | 160 |
| YL-SPT-9-15 | 192 | 192 | 85 | 770 | 175 |
| YL-SPT-9-25 | 227 | 227 | 85 | 1000 | 210 |
| YL-SPT-9-12D | 194 | 97 | 70 | 750 | 2*85 |
| YL-SPT-9-16D | 234 | 117 | 70 | 800 | 2*105 |
| YL-SPT-9-24 | 294 | 147 | 75 | 1040 | 2*130 |
| YL-SPT-9-32 | 350 | 175 | 75 | 1340 | 2*160 |
| YL-SPT-9-40 | 384 | 192 | 75 | 1540 | 2*175 |
